Inspections - Adding General View Inspection Photographs

BridgeStation Knowledge Base > BridgeStation Web Edition > Structures
You can add general view photographs to an inspection. These photos aren't connected to particular elements but are still included on the report and the print-out.

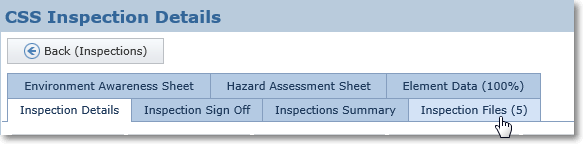

To do this open the inspection you want to work on and click the Inspection Files tab at the top.

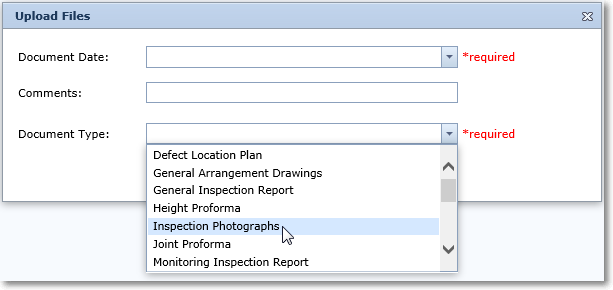

Upload your general view photographs, click the Upload Files... button


then make sure to select the Inspection Photographs document type.


If these photos aren't connected to an element they will appear in the General View Photographs section.

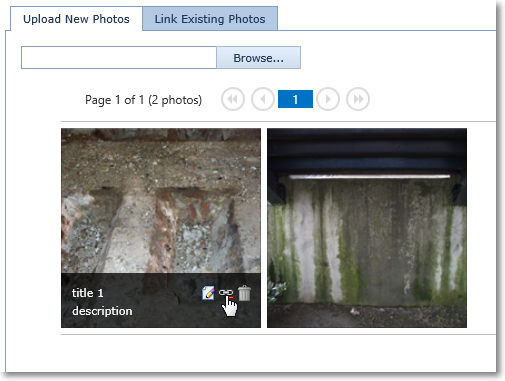

If you have linked a general view type photo to an element by mistake you can unlink the photo to return it to the General View Section.


Alternatively you can use the General View Photos button in the Element Conditions Section.

Article ID: 243, , Modified: 10/19/2023 at 9:39 AM
